175024-1
Manufacturer:
TE Connectivity
Mfr.Part #:
175024-1
Datasheet:
Description:

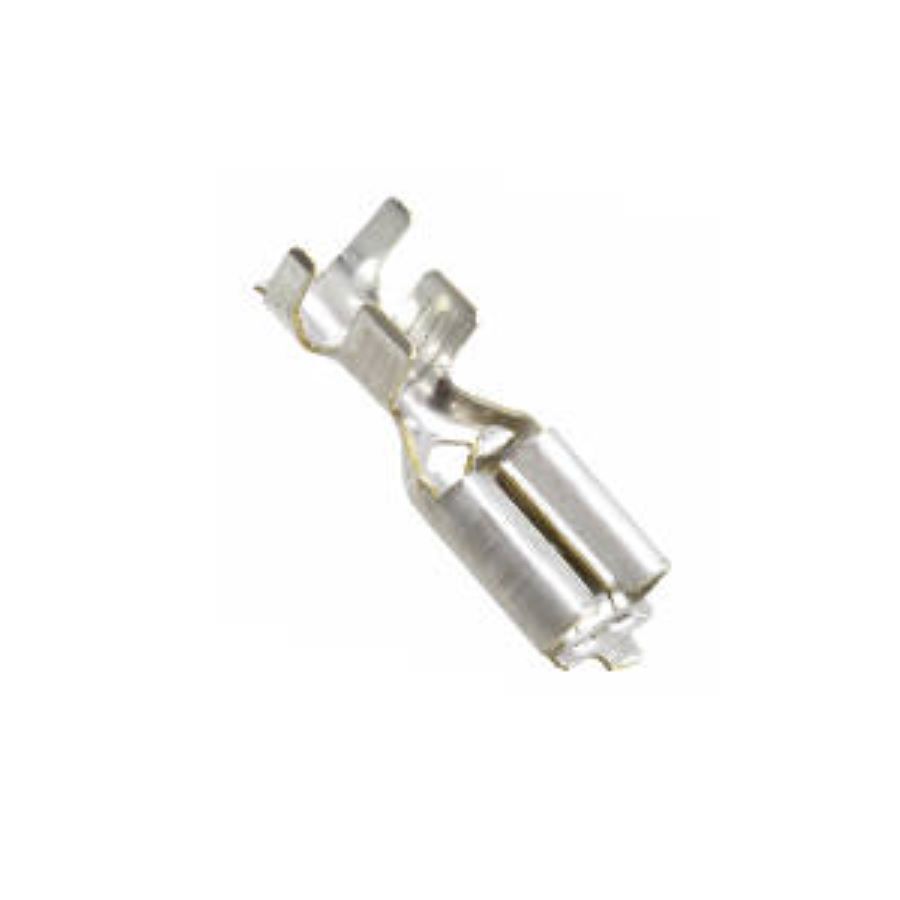

Terminals Free Hanging 10 AWG Female
| Parameter | Value |
|---|---|
| Length | 21.1836 mm |
| Termination | Receptacle |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Material | Brass |
| Packaging | Reel |
| Depth | 7.6 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Gender | Female |
| ELV | Compliant |
| Body Material | Brass |
| Tab Width | 6.35 mm |
| Wire/Cable Diameter | 5.08 mm |
| Connector Type | Connector, Power |
| Wire/Cable Gauge | 10 AWG |
| Insulation | Non-Insulated |
| Wire/Cable Type | Discrete |
| Wire Gauge (Max) | 15 AWG |
| Wire Gauge (Min) | 10 AWG |
| Plating | Tin |
| Termination Style | Crimp |
| Insulation Diameter | 5.1 mm |
| Body Plating | Tin |
| Insulated Wire Support | Yes |
| Mating Tab Width | 6.35 mm |
| Tab Length | 7.7978 mm |
| Tab Thickness | 812.8 µm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Sealable | No |
Stock: 27192
Distributors
pcbx
pcbxUnit Price$0.62280
Ext.Price$0.62280
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.62280 | $0.62280 |
| 10 | $0.31140 | $3.11400 |
| 50 | $0.23954 | $11.97700 |
| 100 | $0.18426 | $18.42600 |
| 500 | $0.14174 | $70.87000 |
| 1000 | $0.10903 | $109.03000 |
| 3000 | $0.08387 | $251.61000 |
| 5000 | $0.07903 | $395.15000 |
| 10000 | $0.07447 | $744.70000 |
